Mother Boards Control Boards & Display for 3D Printer

Description

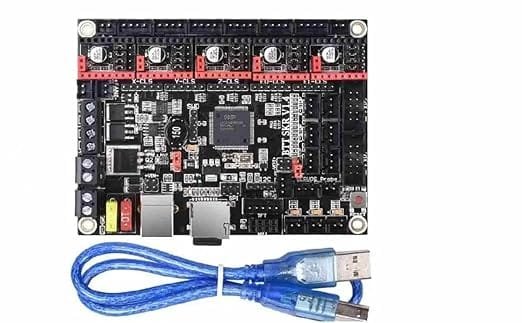

BIGTREETECH SKR V1.4 Turbo 32 Bit Control Board

• FEATURES: BIGTREETECH SKR V1.4 Turbo Using 32-bit 120MHz ARM-class Cortex-M3 series LPC1769 main control chip, the performance is greatly improved;1-way CNC fan,3-way Frequent fans.Dual Z-axis interface, eliminating the trouble of external drive expansion module;
• MULTIPURPOSE: Reserve BLTouch interface SERVOS and Probe for easy use of BL Touch, I2C, SPI, WIFI interfaces for additional DIY. External DC5V power module can be plugged in to supply power to TFT screen, BLtouch, Neopixel.
• TMC2209: The TMC2209 stepper driver is ultra-quiet mode. Module supports large area of heat dissipation pad for reduced temperature of the driver when it is working. TMC2209–Prevent motor shake;Support stall detection;Support STEP / DIR and UART mode.

Creality 1.1.4 Version Stock Motherboard

• STOCK MOTHERBOARD: Standard Version 1.1.4 Mainboard for 3D Printer, NOT SILENT board. This is the default motherboard that comes installed with the ender 3.
• COMPATIBILITY: Compatible with Ender-3, Ender-3 PRO, Ender-5, CR-10 and CR-10 Mini
• FEATURES: Based on Allegro A4988 Driver IC, Enabled with Thermal Protection/Runaway Firmware. Loaded with default firmware from Creality3D, ready to print.

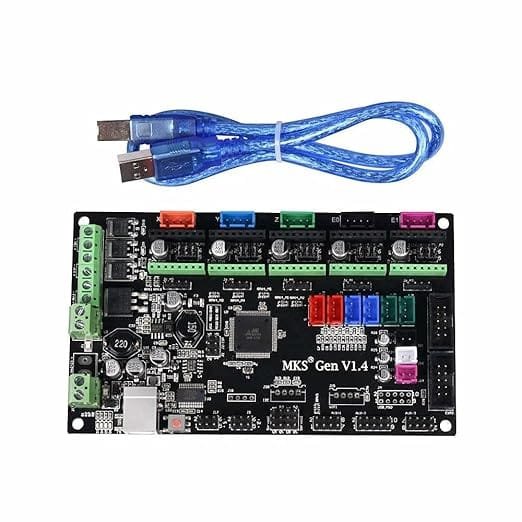

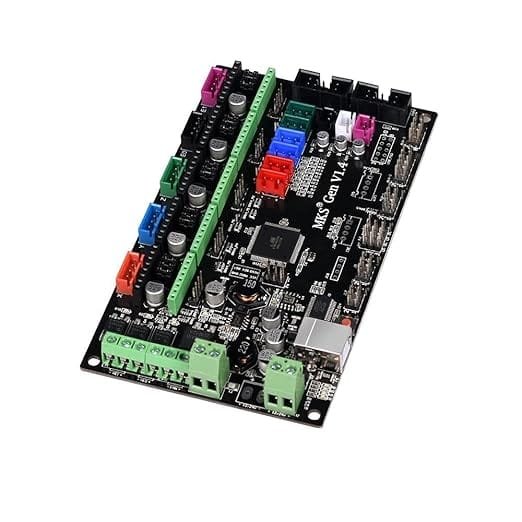

MKS Gen V1.4 Controller Board Mother Board

• FEATURES: It gathers Mega 2560 and ramps1.4 on the same board. This helps solve the complicated problem of Ramps1.4 combination interface that creates issues of increases in failure.
• HIGH QUALITY: The circuit board uses the high-quality 4-layer board, for heat optimization and ramps are 2 shelves. It also has a high-quality MOSFET, for better heat dissipation.
• FIRMWARE: The board can use open-source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4. Flexible power supply from 12 – 24V. With onboard ATmega2560. Dedicated power chip, supports 12V-24V power input, the voltage converter chip solves the heat problem Ramps.

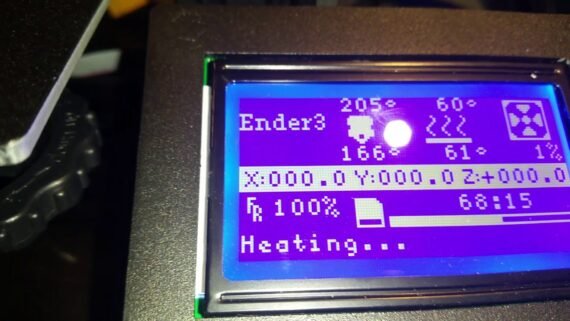

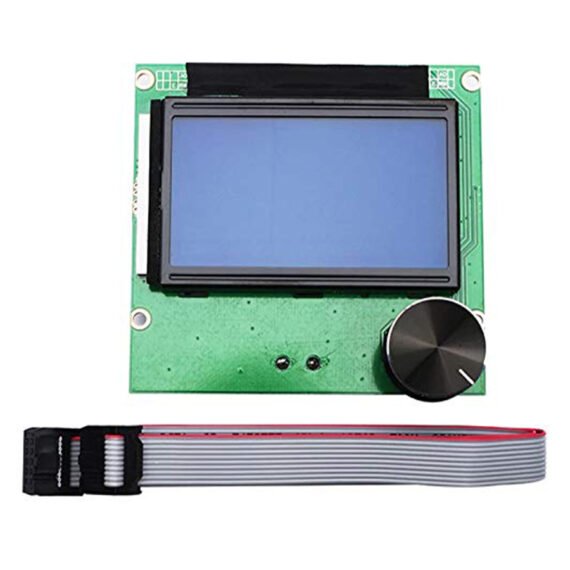

LCD Display Screen Board with Ribbon Cable for 3D Printer

• EASY TO USE: The LCD display controller module is a perfect fit for your Ender-3/Ender-3s/Ender-3 Pro and other 3D Printers. It is very easy to install and you can replace your problematic displays with this brand new LCD display.
• SPECIFICATIONS: 3 inch * 2 inch Large size screen for seeing clearly and operating easily. You can use the round button to tune your printer and operate it.
• FEATURES: Made of Good quality material made, non-toxic and odorless. The screen is easy to install. The product will have a long life if used carefully and maintained properly.

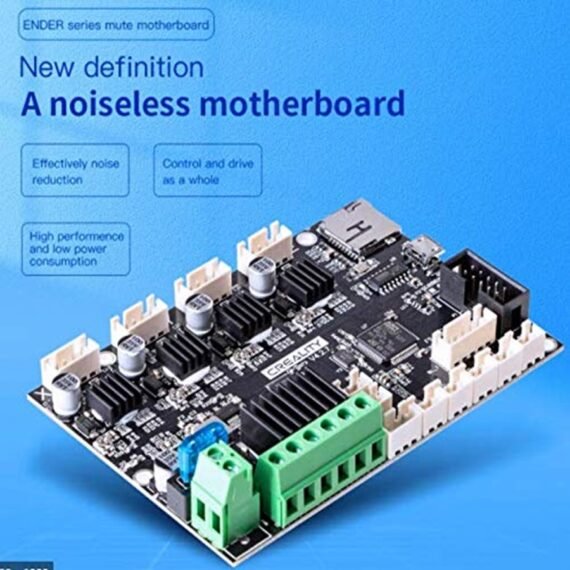

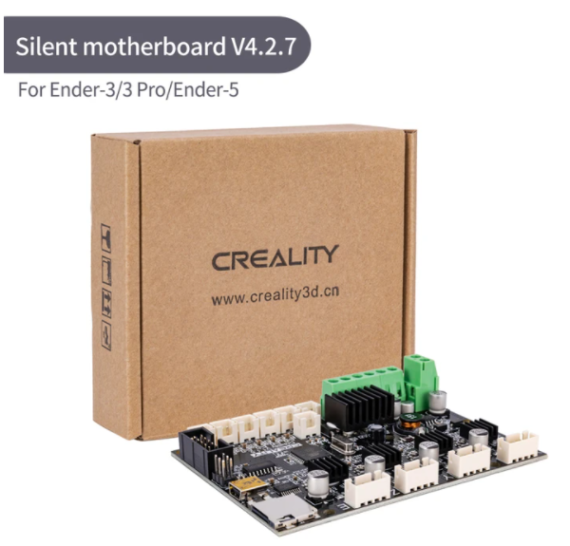

V4.2.7 Upgrade Silent Mainboard

• UPGRADE: Brand new and upgraded silent motherboard for your ender 3 / ender 3 pro / ender 5 machine. Gives a Super Quiet printing experience. Effectively a noiseless motherboard.
• NEW BOARD: Brand new V4.2.7 motherboard with strong anti-interference, special power management chip support 24V power input with better stability, additional ESD with high performance and low consumption
• COMPATIBILITY: Mainboard supports BL-Touch automatic levelling and material break detection. Easy to install, easy to DIY. The mute motherboard with complete functions, strong usability and wide application, which is suitable for Ender 3, Ender 3 V2, Ender 3 Pro, Ender 5
• SPECIFICATIONS: Equipped with the imported control chip, control and drive, faster run speed, more sensitive control system, higher printing precision and stronger performance. High Quality MOS Tube, better heat dissipation, compact circuit combination, closed inductance, antioxidant, corrosion and high temperature resistance, stable working for hours.
